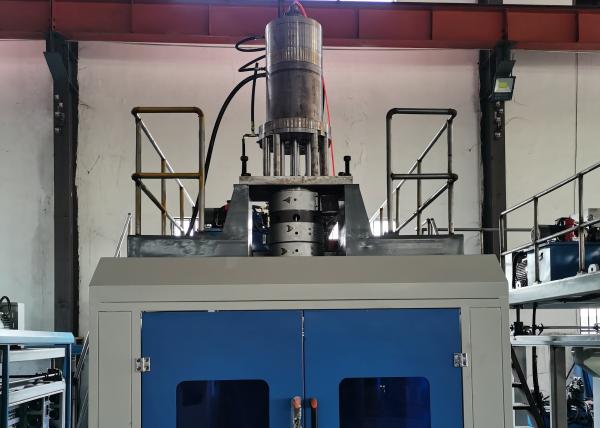

    6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle

    Ask Lasest Price
    Brand Name : SHUANGLI
    Model Number : SLBU-65
    Certification : ISO, CE
    Price : Price negotiation.
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set per month
    Delivery Time : 20 woking day
    • Product Details
    • Company Profile

    6 Head High Speed Blow Molding Machine Double Station PVC Medicine Bottle

    U series Double Station High Speed 1 Layer 6 Die Heads Blow Molding Machine for Plastic Medicine Bottle​


    SLBU series:



    1. It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.


    2. Double or Single station single die head design, very easy to operate and maintenance.


    3. Most components of the blow moulding machine are from famous world brand.


    4. Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.


    5. Multiple screw available for double layer .


    6. Auto deflashing device available, can remove the extra parts of bottles.


    7. Auto lubricant system controlled by PLC.


    Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.

    Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .


    SPECIFICATIONSLBU-65
    MATERIAL PE,PP,EVA,ABS,PS
    MAX CONTAINER CAPACITYL5
    NUMBER OF DIE HEADSET1,2,3,4,6,8
    OUPUT(DRY CYCLE)PC/HR1000x2
    MACHINE DIMENSION (LxWxH )MM4000x2300x2200
    TOTAL WEIGHTTON6.5T
    CLAMPING UNIT
    CLAMPING FORCEKN65
    PLATEN OPENING STROKEMM220-520
    PLATEN SIZE(WxH)MM400x430
    MAX MOULD SIZE(WxH)MM460x430
    MOLD THICKNESSMM255-280
    EXTRUDER UNIT
    SCREW DIAMETERMM65
    SCREW L/D RATIOL/D25
    MELTING CAPACITYKG/HR70
    BARREL HEATING POWERKW15
    NUMBER OF HEATING ZONEZONE3
    EXTRUDER MOTOR RATED POWERKW15
    DIE HEAD
    NUMBER OF DIE HEATING ZONEZONE2-5
    POWER OF DIE HEATINGKW6
    CENTER DISTANCE OF DOUBLE DIEMM130
    CENTER DISTANCE OF THREE DIEMM110
    CENTER DISTANCE OF FOUR DIEMM100
    CENTER DISTANCE OF SIX DIEMM80
    MAX DIE-PIN DIAMETERMM180
    POWER
    MAX DRIVE POWERKW18
    TOTAL POWERKW50
    FAN POWER OF SCREWKW2.4
    AIR PRESSUREMPA0.6
    AIR CONSUMPTIONM3/MIN0.4
    AVERAGE ENERGY CONSUMPTIONKW18
