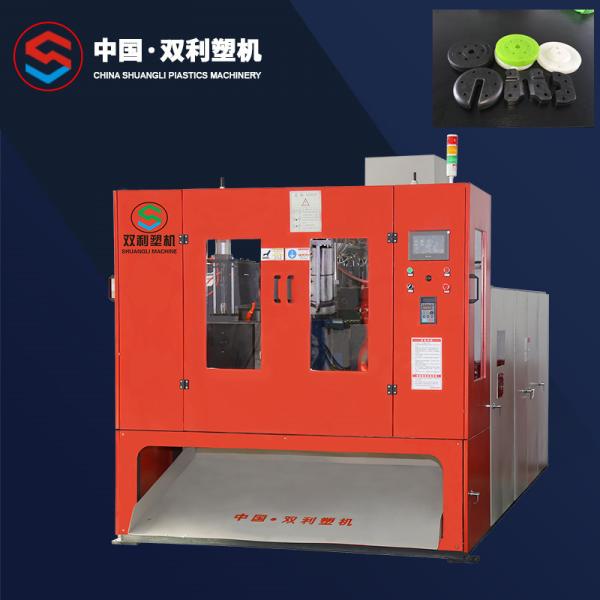

    Plastic Cover 2l Blow Molding Machine Single Layer 4 Cavities Automatic PET Bottle

    Ask Lasest Price
    Brand Name : SHUANGLI
    Model Number : SLX-55
    Certification : ISO, CE
    Price : Price negotiation.
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set per month
    Delivery Time : 20 woking day
    • Product Details
    • Company Profile

    Plastic Cover 2l Blow Molding Machine Single Layer 4 Cavities Automatic PET Bottle

    One Head One Layer Double Station Blow Molding Machine for Plastic Cover SLX-55​


    SLX series:


    1: This machine is Multi cavities: 1~4 cavities and Designed for the PE/PP/PETG/PVC/Co-Extrusion material and other raw materials such as blow molding.


    2: Series are Shuangli company pioneered the gas -liquid combination of new type blow moulding machine, superior performance,

    stable operation, simple operation, affordable andCharacteristic


    3: The working temperature of electrical devices is between 5°C and 40°C.

    The electrical devices work at the highest temperature of 40°C and relative humidity of 50%RH. If the temperature is comparatively low, higher relative humidity is allowed, for example, when the temperature is 20°C, the humidity can be 90%RH.

    All the spare parts for the machine are specially designed and produced for this machine only. They can definitely not be used for other purposes.


    SPECIFICATIONSLX-55
    MATERIAL PE,PP,EVA,ABS,PS
    MAX CONTAINER CAPACITYL2
    NUMBER OF DIE HEADSET1,2,3,4,6
    OUPUT(DRY CYCLE)PC/HR1000x2
    MACHINE DIMENSION (LxWxH )MM3200x1600x2200
    TOTAL WEIGHTTON3T
    CLAMPING UNIT
    CLAMPING FORCEKN40
    PLATEN OPENING STROKEMM120-420
    PLATEN SIZE(WxH)MM360X300
    MAX MOULD SIZE(WxH)MM240x400
    MOLD THICKNESSMM105-200
    EXTRUDER UNIT
    SCREW DIAMETERMM55
    SCREW L/D RATIOL/D25
    MELTING CAPACITYKG/HR45
    BARREL HEATING POWERKW12
    NUMBER OF HEATING ZONEZONE3
    EXTRUDER MOTOR RATED POWERKW7.5(11)
    DIE HEAD
    NUMBER OF DIE HEATING ZONEZONE2-5
    POWER OF DIE HEATINGKW6
    CENTER DISTANCE OF DOUBLE DIEMM1320
    CENTER DISTANCE OF THREE DIEMM80
    CENTER DISTANCE OF FOUR DIEMM60
    CENTER DISTANCE OF SIX DIEMM60
    MAX DIE-PIN DIAMETERMM150
    POWER
    MAX DRIVE POWERKW18
    TOTAL POWERKW22
    FAN POWER OF SCREWKW0.42
    AIR PRESSUREMPA0.6
    AIR CONSUMPTIONM3/MIN0.4
    AVERAGE ENERGY CONSUMPTIONKW8
