    6 Head Double Station Blow Molding Machine PP Lubricant PE Bottle Blower Machine

    Ask Lasest Price
    Brand Name : SHUANGLI
    Model Number : SLBU-65
    Certification : ISO, CE
    Price : Price negotiation.
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set per month
    Delivery Time : 20 woking day
    • Product Details
    • Company Profile

    6 Head Double Station Blow Molding Machine PP Lubricant PE Bottle Blower Machine

    High Speed 1 Layer Double Station 1 Die head Blow Molding Machine for 5L Plastic Lubricating Oil Bottle with View Strip Line


    SLBU series:

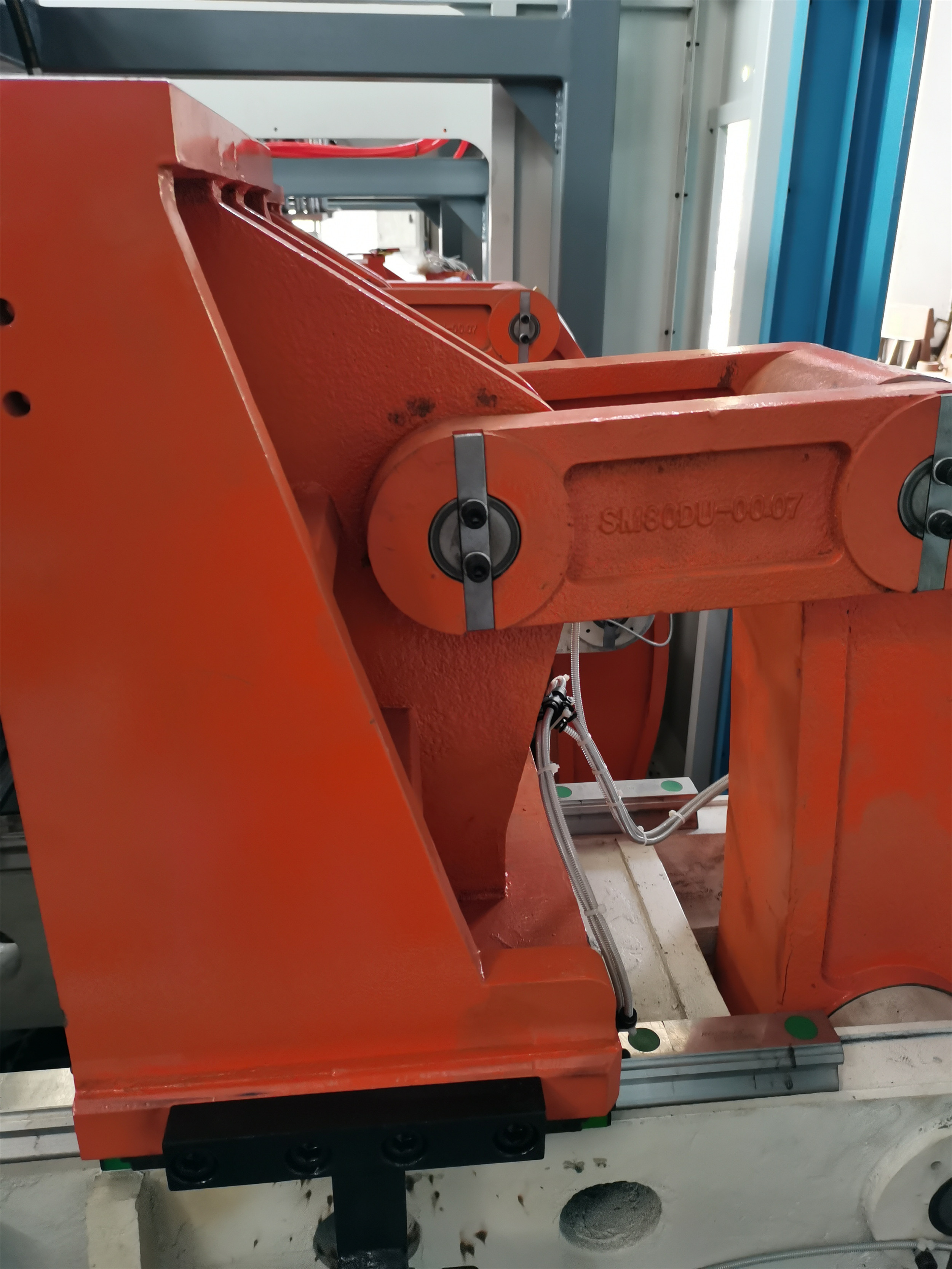

    1: this machine is suitable for the production of 5L plastic hollow products.With toggle balance clamping system for high accuracy and excellent clamping force.


    2: Display contrast is reduced: Click on the "Down" button and the display's light display will decrease in brightness.

    Display Contrast Storage: Click the “S” button to store the current display's light display brightness to maintain the current brightness.

    System runtime correction: Click “HH:MM:SS” to perform system time correction.

    System language display selection: Click the "Chinese" button, all the characters displayed on the display are Chinese. Click the "ENGLISH" button to display all the text in English.


    SPECIFICATIONSLBU-65
    MATERIAL PE,PP,EVA,ABS,PS
    MAX CONTAINER CAPACITYL5
    NUMBER OF DIE HEADSET1,2,3,4,6,8
    OUPUT(DRY CYCLE)PC/HR1000x2
    MACHINE DIMENSION (LxWxH )MM4000x2300x2200
    TOTAL WEIGHTTON6.5T
    CLAMPING UNIT
    CLAMPING FORCEKN65
    PLATEN OPENING STROKEMM220-520
    PLATEN SIZE(WxH)MM400x430
    MAX MOULD SIZE(WxH)MM460x430
    MOLD THICKNESSMM255-280
    EXTRUDER UNIT
    SCREW DIAMETERMM65
    SCREW L/D RATIOL/D25
    MELTING CAPACITYKG/HR70
    BARREL HEATING POWERKW15
    NUMBER OF HEATING ZONEZONE3
    EXTRUDER MOTOR RATED POWERKW15
    DIE HEAD
    NUMBER OF DIE HEATING ZONEZONE2-5
    POWER OF DIE HEATINGKW6
    CENTER DISTANCE OF DOUBLE DIEMM130
    CENTER DISTANCE OF THREE DIEMM110
    CENTER DISTANCE OF FOUR DIEMM100
    CENTER DISTANCE OF SIX DIEMM80
    MAX DIE-PIN DIAMETERMM180
    POWER
    MAX DRIVE POWERKW18
    TOTAL POWERKW50
    FAN POWER OF SCREWKW2.4
    AIR PRESSUREMPA0.6
    AIR CONSUMPTIONM3/MIN0.4
    AVERAGE ENERGY CONSUMPTIONKW18
