    Sport Bottle Extrusion Blow Molding Machine

    Ask Lasest Price
    Brand Name : SHUANGLI
    Model Number : SLD-75
    Certification : ISO, CE
    Price : Price negotiation.
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set per month
    Delivery Time : 20 woking day
    • Product Details
    • Company Profile

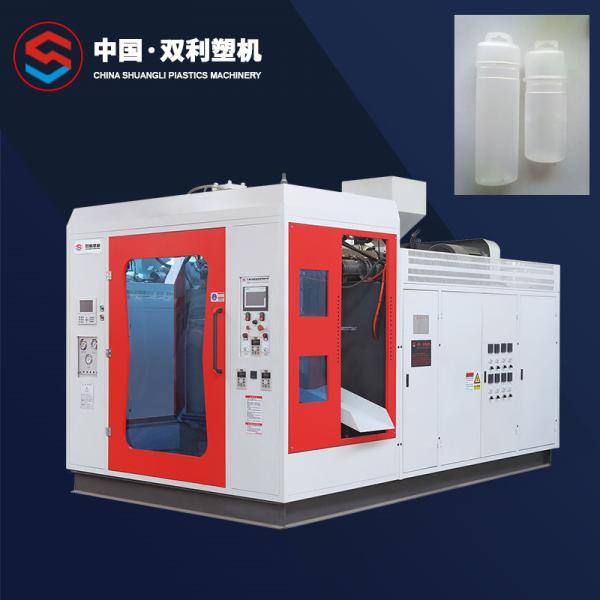

    Sport Bottle Extrusion Blow Molding Machine

    D Type High Speed Single Station Plastic Bottle Blow Molding Machine with IML for Plastic Sport Bottle


    SLD series:


    1: this machine is suitable for the production of 200ML 10L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speedF aster, run more smoothly.


    2: die opening and closing system: specially designed for Heng lock mould mechanism using a high pressure mode locking, locking plate stress in the centre of the template, clamping force, openThe rigid lock template, even if the ultra wide die is also fitted.


    3: hydraulic system: full hydraulic double proportional hydraulic control, equipped with imported famous brand hydraulic valve and oil pump, stable, reliable.This machine is suitable for bottles, detergent bottles, oil pot, plastic toys, cosmetics bottles, beverage bottles, chemical Hardware

    Multi cavities: 1~4 cavities and Designed for the PE/PP/PETG/PVC/Co-Extrusion material

    die head system: all the use of 38CRMOALA and other materials, the precision machining and heat treatment.


    4.Safety rules should be followed in operating the machine:

    1) Do not start the machine before knowing its features and operating procedure .

    2) Before each operation, check the reliability of safety switches and safety doors. Do not start machine before confirming all safety devices are perfect and effective.

    3) Do not randomly touch moving, heating and energizing parts during running. Do not stretch out into mold clamping device. Do not stretch out head. Stop oil pump motor and switch off power in repair. Be ware of hot material barrel!

    4) Two personnels are forbidden to operate one machine at one time except in installing mould.


    SPECIFICATIONSLD-75
    MATERIAL PE,PP,EVA,ABS,PS
    MAX CONTAINER CAPACITYL10
    NUMBER OF DIE HEADSET1,2,3,4,6
    OUPUT(DRY CYCLE)PC/HR600
    MACHINE DIMENSION (LxWxH )MM4300x2400x2200
    TOTAL WEIGHTTON7.5T
    CLAMPING UNIT
    CLAMPING FORCEKN65
    PLATEN OPENING STROKEMM220-530
    PLATEN SIZE(WxH)MM320x350
    MAX MOULD SIZE(WxH)MM400x350
    MOLD THICKNESSMM225-320
    EXTRUDER UNIT
    SCREW DIAMETERMM75
    SCREW L/D RATIOL/D25
    MELTING CAPACITYKG/HR95
    BARREL HEATING POWERKW20
    NUMBER OF HEATING ZONEZONE4
    EXTRUDER MOTOR RATED POWERKW22
    DIE HEAD
    NUMBER OF DIE HEATING ZONEZONE2-5
    POWER OF DIE HEATINGKW8
    CENTER DISTANCE OF DOUBLE DIEMM130
    CENTER DISTANCE OF THREE DIEMM110
    CENTER DISTANCE OF FOUR DIEMM100
    CENTER DISTANCE OF SIX DIEMM80
    MAX DIE-PIN DIAMETERMM200
    POWER
    MAX DRIVE POWERKW24
    TOTAL POWERKW62
    FAN POWER OF SCREWKW3.6
    AIR PRESSUREMPA0.6
    AIR CONSUMPTIONM3/MIN0.5
    AVERAGE ENERGY CONSUMPTIONKW22
