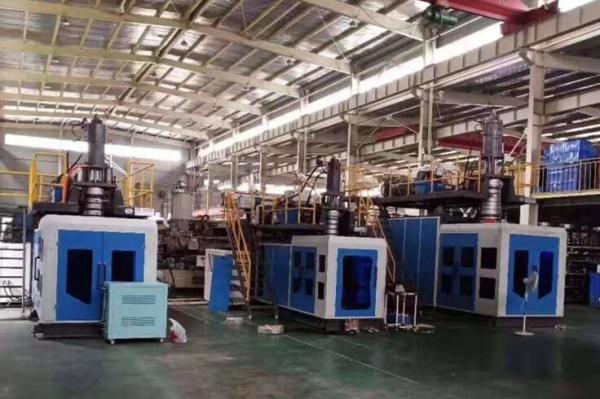

    Plastic Water Bottle Accumulator Blow Moulding Machine 5 Gallon 1 Die Head

    Ask Lasest Price
    Brand Name : SHUANGLI
    Model Number : SLBC
    Certification : ISO, CE
    Price : Price negotiation.
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set per month
    Delivery Time : 20 woking day
    • Product Details
    • Company Profile

    Plastic Water Bottle Accumulator Blow Moulding Machine 5 Gallon 1 Die Head

    5 Gallon Blow Molding Machine 1 Die Head for plastic water bottle


    SLBC series: (German model)


    1:The 5 Gallon Blow Molding Machine 1 Die Head for plastic water bottle large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.


    2: The 5 Gallon Blow Molding Machine 1 Die Head for plastic water bottleThe electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.


    3. The 5 Gallon Blow Molding Machine 1 Die Head for plastic water bottleThe operation panel is equipped with a power key switch, a touch display, an alarm, a cutter heat, a cycle start, an emergency stop, a twisted motor switch, a twister motor speed switch.


    The equipment consists of safety door, frame, plasticizing system, die lifting device, mold shifting and opening and closing mechanism, hydraulic system, water cooling system, die, air blowing device, tube cutting device, pneumatic system, automatic lubrication device, The bottle bottle arrangement device and the electronic control system are composed.


    SPECIFICATIONSLBC-120
    MATERIAL PE,PP,EVA,ABS,PS
    MAX CONTAINER CAPACITYL160
    OUPUT(DRY CYCLE)PC/HR300
    MACHINE DIMENSION (LxWxH )MM7500x4200x6200
    TOTAL WEIGHTTON22T
    CLAMPING UNIT
    CLAMPING FORCEKN800
    PLATEN OPENING STROKEMM600-1400
    PLATEN SIZE(WxH)MM1400x1600
    MAX MOULD SIZE(WxH)MM1200x1900
    MOLD THICKNESSMM610-880
    EXTRUDER UNIT
    SCREW DIAMETERMM120
    SCREW L/D RATIOL/D25
    MELTING CAPACITYKG/HR280
    BARREL HEATING POWERKW42
    NUMBER OF HEATING ZONEZONE6
    EXTRUDER MOTOR RATED POWERKW90
    DIE HEAD
    NUMBER OF DIE HEATING ZONEZONE5
    POWER OF DIE HEATINGKW38
    MAX DIE-PIN DIAMETERMM500
    POWER
    MAX DRIVE POWERKW125
    TOTAL POWERKW180
    FAN POWER OF SCREWKW4.8
    AIR PRESSUREMPA0.8-1.2
    AIR CONSUMPTIONM3/MIN0.8
    AVERAGE ENERGY CONSUMPTIONKW72
    ACCUMULATOR CAPACITYL30
